Fuji IP imaging plate
Fuji IP imaging plate
+
  • Fuji IP imaging plate
  • Fuji IP imaging plate

Fuji IP imaging plate

Category:

FUJIFILM

The image reader receives an IP and pops it up from the front end. This advanced design allows reading IP boards up to 152 centimeters long in narrow spaces. An operation sequence can be performed in the same place with just a few actions.
  • Commodity name： Fuji IP imaging plate
Message
Related
  • Description

  • 25μm reading achieves high resolution
    New 「IP direct reading function」, directly reading IP

    Innovative new function

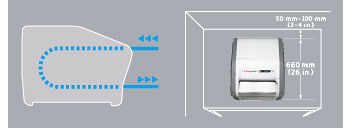

    Allows maintainingIP insertion/ejection at the front end of the image reader, thus occupying very little workspace.





    The image reader receives anIPand ejects it from the front end. This advanced design enables reading up to152centimeters ofIPboards in narrow spaces. An operation sequence can be performed in the same place with just a few movements.

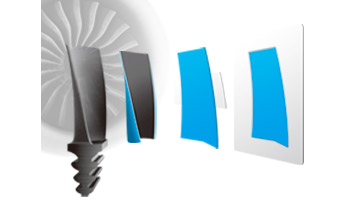

    Special cuttingIP system*1Custom-designed according to the test objectIP board

    Using various shapes ofIP boards, new special tools with three types





    DynamIxDedicated cuttingIPsystem provides a suitableIP。IPIn order to utilize various shapes of boards, special tools that reduce restrictions have been developed. Now, various objects can be inspected with high accuracy.







    *1Accepting orders. Please contact us forIPshape and Size.

    Structure of the imaging plate

    Imaging plate(IP)with350μmthick polyethylene terephthalate(PET)material as a base, featuring excellent flatness and flexibility, and coated with a special phosphor that emits"night light"。When performingXray photography, the radiation penetrating the inspection object is distributed across the entire surface in the form of electron energy proportional to the dose on the “phosphor layer” and temporarily stored. On theIPsurface (white side), there is a transparent"protective layer"that prevents"phosphor"from being contaminated or scratched. On the back, there is a"back protective layer"covering the light-shielding layer (black). The overall thickness is approximately600-700μm，thinner, lighter, more compact, and more flexible than other electronic radiation detection sensors.
