Fuji pressure test film

Category:

FUJIFILM

Easily visualize pressure, surface pressure, and pressure distribution. Pressure sensitive films allow for easy measurement of pressure balance, pressure distribution, and pressure magnitude. This pressure sensitive film is developed based on Fujifilm's advanced thin film coating technology. The film has a pressure-sensing function across the entire surface, allowing for a clear check of the pressure distribution. The film turns red when pressure is applied, and the color intensity changes with the magnitude of the pressure. Covering a wide pressure range (0.006～300MPa), this pressure sensitive film is available in 8 Models and 9 types.

Commodity name： Fuji pressure test film

Message

Description

　　Easily visualize pressure, surface pressure, and pressure distribution. Pressure sensitive film allows for easy measurement of pressure balance, pressure distribution, and pressure magnitude. This pressure sensitive film is developed based on Fujifilm's advanced thin film coating technology. The film has a pressure-sensing function that allows for a clear check of the pressure distribution over the entire surface. The film turns red when pressure is applied, and the color intensity changes with the magnitude of the pressure. Covering a wide pressure range (0.006～300MPa), this pressure sensitive film comes in 8 models and 9 types.

　　

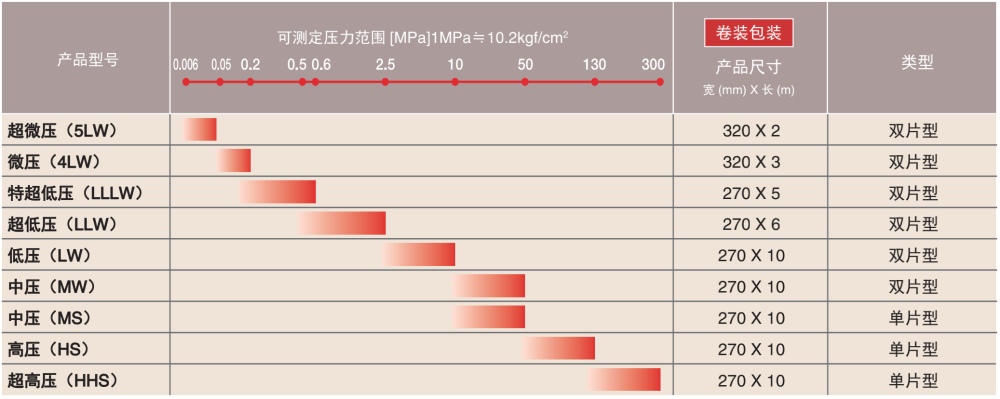

　　According to the pressure range, this pressure sensitive film comes in 8 models and 9 types.

　　The pressure range (MPa) is categorized by type; the pressure value needs to be checked and confirmed under the customer's actual usage environment.

　　1 MPa = 1 N/mm2 ≒ 10.2 kgf/cm2

　　When calculating the pressure value, the weight (kg) or force (N) must be followed by the area (mm2 or cm2).

　　For example, 100kg on 100mm2 (1cm2) becomes 100kgf/cm2.

　　Dividing by 10.2, it becomes 100 kgf/cm2 / 10.2 = 9.8 MPa.

　　Top of Window

　　Weight kgf ÷ Area cm2

　　Measurable Pressure Range [MPa] = 9.8 [MPa]1421.37 [PSI]

　　Bottom of Window

　　*The suffix of the pressure sensitive film type: W=Double type S=Single type

　　Pressure Image Analysis System FPD-8010E

　　

　　Using the pressure image analysis system allows for more detailed analysis and data sharing.

　　The pressure image analysis system FPD-8010E is a system that can perform more precise and multifaceted data analysis of pressure-sensitive film/pressure-sensitive paper samples. It enables visualization and data analysis of pressure on a computer and can be applied infinitely to various product development, design, production equipment improvement, and maintenance.

　　Product Name・Model

　　Pressure Image Analysis System FPD-8010E

　　Product Composition

　　Software (CD-ROM), dedicated cover plate, calibration paper, installation manual

　　Main Functions

　　Pressure analysis, pressure data output function, partial magnification function, ultra-long synthesis function

　　Applicable Scanner

　　Epson A4 Scanner Perfection V37/V370, Perfection V600*4

　　Recommended Operating Environment

　　Windows8/8.1/10 (32/64bit), CPU 2GHz or higher, Memory 2GHz or higher, HDD 2GB or more free space, Display resolution 1024x768 or higher

　　*4 Scanner needs to be prepared by the user.

　　Pressure Sensitive Film/Scanning Service

　　

　　The customer's processed pressure sensitive film can be measured using the FPD-8010E trial version.

　　The customer's processed (color development completed) pressure sensitive film is temporarily stored, converted into a measurable image file using the FPD-8010E trial version, and returned to the customer. This is a paid service that allows customers to confirm their pressure-sensitive film using the FPD-8010E trial version before purchasing the FPD-8010E.
